E-Series Quadcopter Frame
The E-Series 10–20kg Agricultural Drone Frame delivers unmatched strength and stability for heavy-duty, high-performance spraying operations.
Our Structure & Detachable Camera Unibody, Strong and Durable
The E-Series Drone Frame features an advanced unibody molding design that replaces complex assemblies with a single, high-strength frame, ensuring exceptional rigidity and impact resistance. Its detachable front camera mount provides versatile options for easy installation, adjustment, or secure enclosure based on your operational needs.
Seamless Protection, Striking Design
Engineered with a fully waterproof unibody, the E-Series ensures hassle-free cleaning and long-lasting durability. Its elegant starlight blue finish adds a premium, attention-grabbing touch to your drone.
Smart Integration, Strong Build
Integrated power board supports major flight controllers with minimal interference. One-piece folding parts and C-shaped clamps ensure strength and stability.
Our Types of E-Series Quadcopter

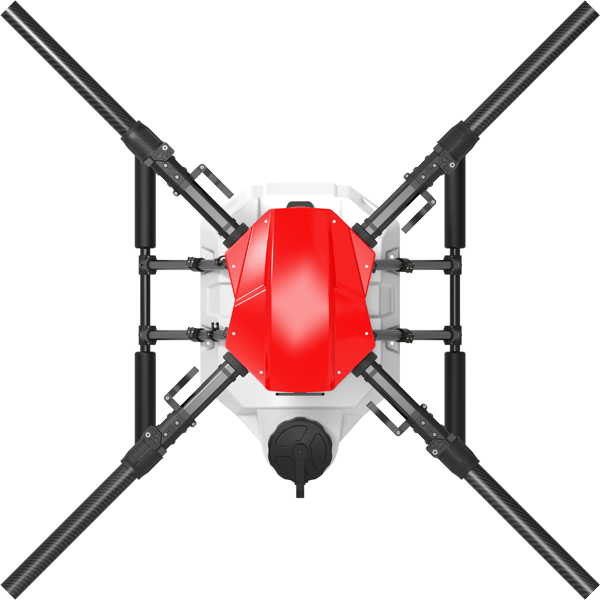

EFT E-Series E410P
| Specification | Details |
|---|---|
| Motor | X8 |
| Propeller | 30-inch folding propeller |
| ESC | 80A FOC |
| Power Supply | 12S |
| Motor Wheelbase | 1416 mm |
| Unfolded Dimensions | 1801 × 1801 × 567 mm |
| Folded Dimensions | 701 × 701 × 567 mm |
| Medicine Tank Capacity | 10 L |
| Frame Weight | 5 kg |
Â

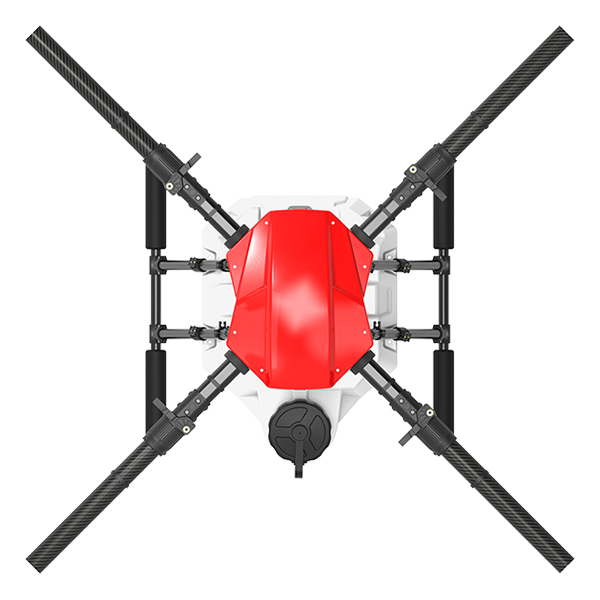

EFT E-Series E416P
| Specification | Details |
|---|---|
| Motor | X9 |
| Propeller | 34-inch folding propeller |
| ESC | 80A FOC |
| Power Supply | 12S |
| Motor Wheelbase | 1362 mm |
| Unfolded Dimensions | 1848 × 1848 × 611 mm |
| Folded Dimensions | 680 × 680 × 611 mm |
| Medicine Tank Capacity | 16 L |
| Frame Weight | 5.07 kg |
Â

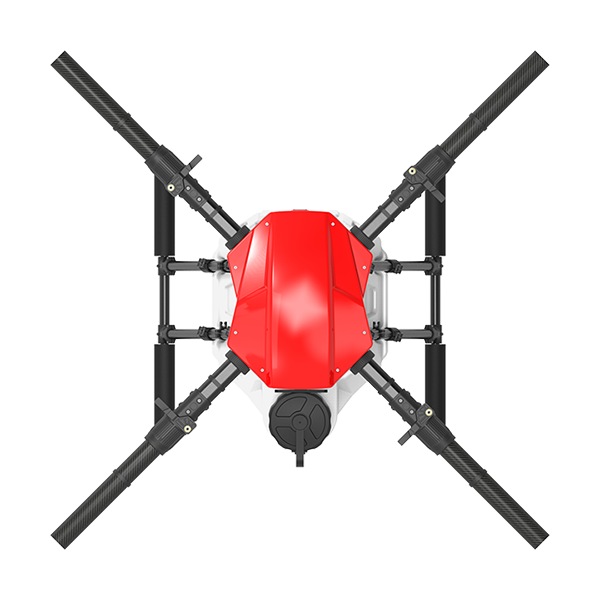

EFT E-Series E420P
| Specification | Details |
|---|---|
| Motor | X9PLUS |
| Propellers | 36-inch folding propellers |
| ESC | 80A FOC |
| Power Supply | 14S |
| Motor Wheelbase | 1462 mm |
| Unfolded Dimensions | 1954 × 1954 × 663 mm |
| Folded Dimensions | 713 × 713 × 663 mm |
| Medicine Tank Capacity | 20 L |
| Frame Weight | 5.14 kg |
Â

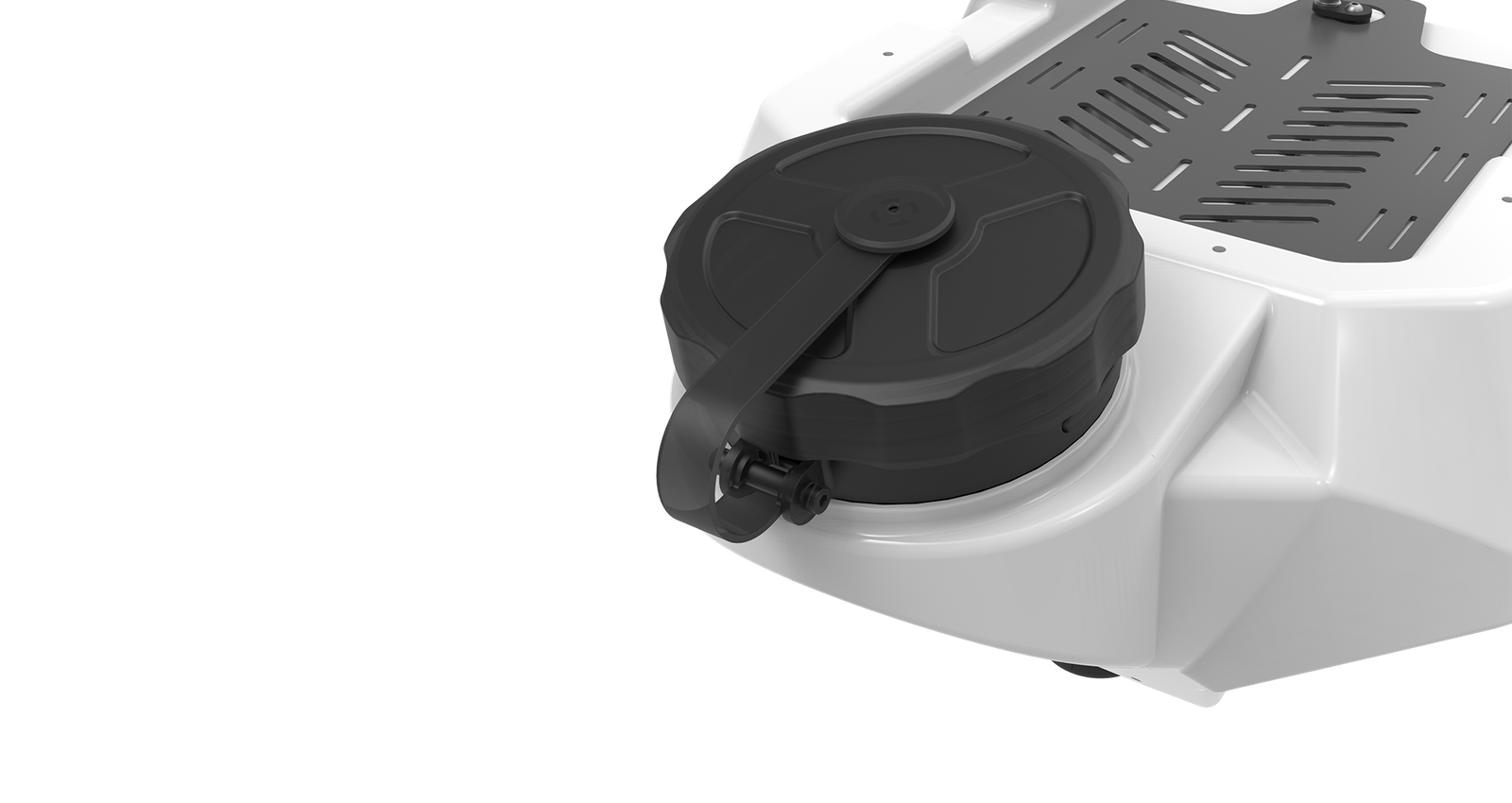

Optimized Large Inlet for Easy Refilling
A bigger, ergonomically designed tank inlet ensures smooth chemical pouring, minimizes wastage, and improves operational efficiency in the field.
