X6 Series
Specifications
X6 Series

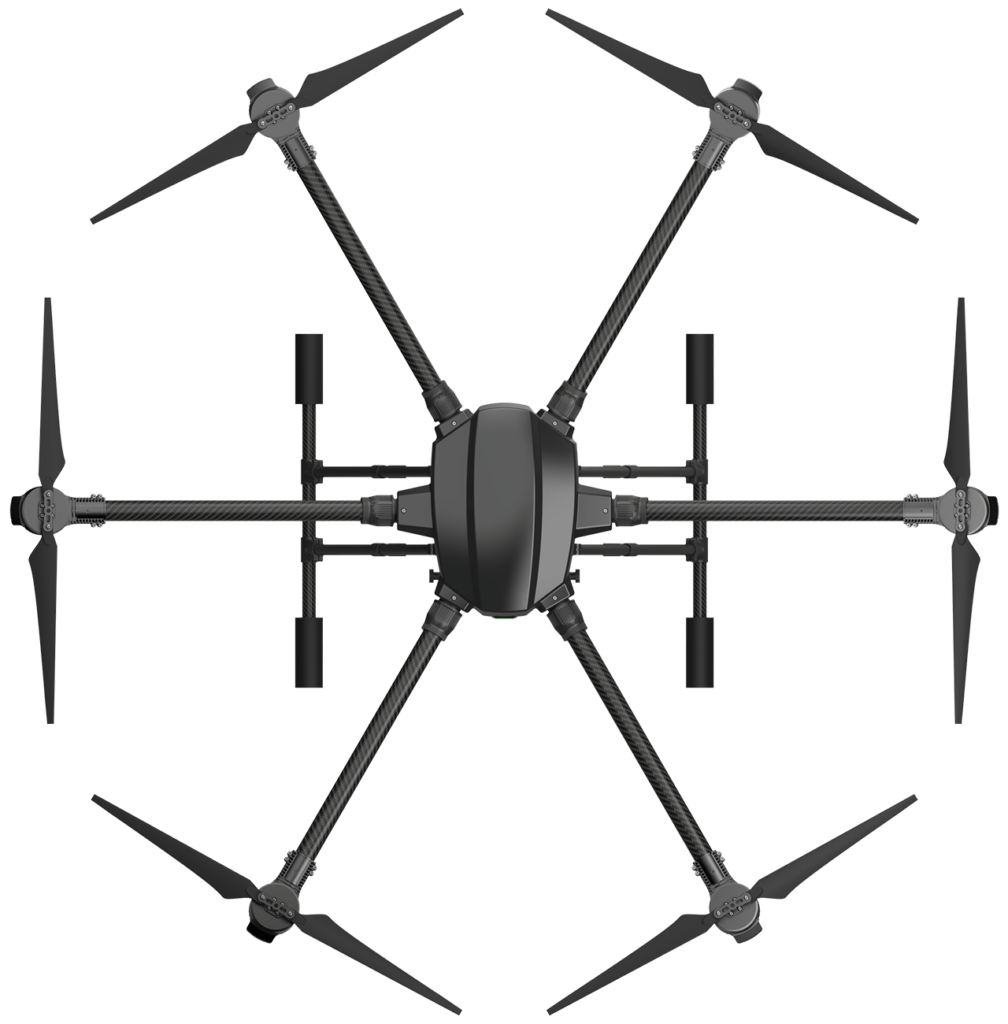

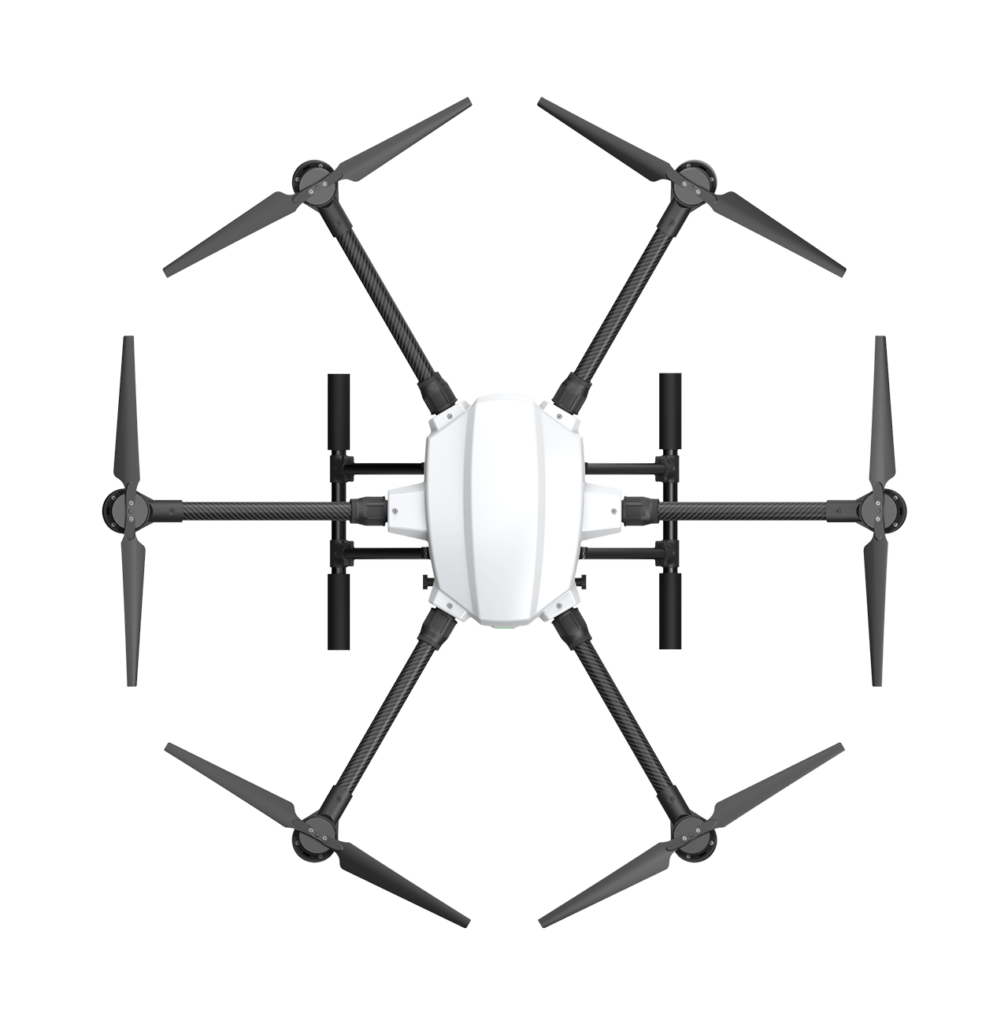

Industrial Drone Platform for Smart Operations
Lightweight. Powerful. Versatile.

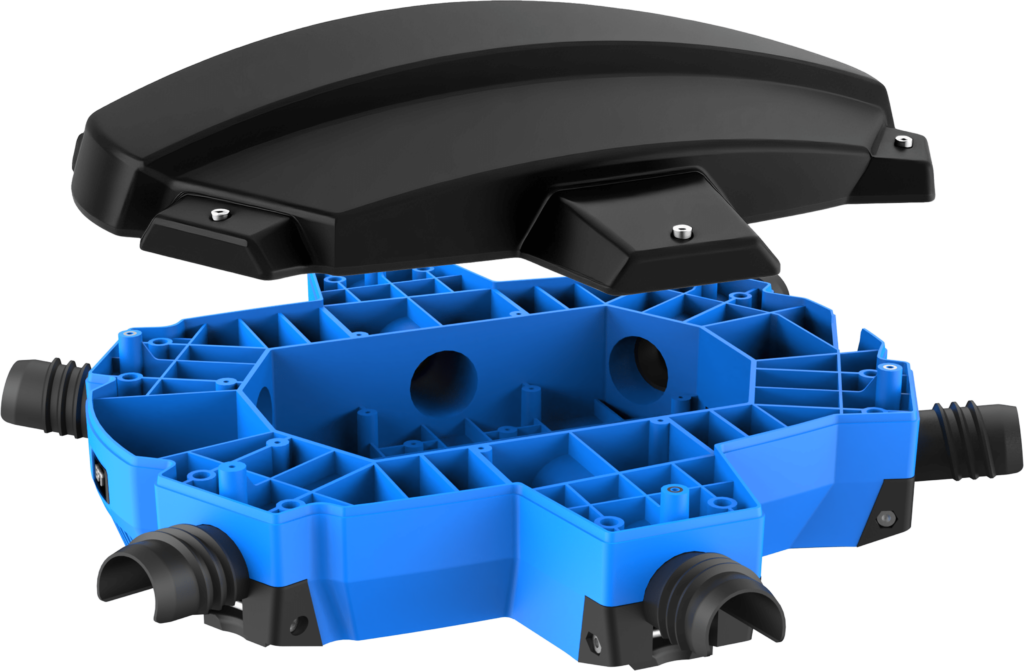

Integrated Modular Frame for Quick & Easy Assembly
Featuring a modular structure with an integrated injection molding process, this design reduces component complexity for easier assembly. Its spacious internal layout supports flexible component installation, making it ideal for light-load applications.

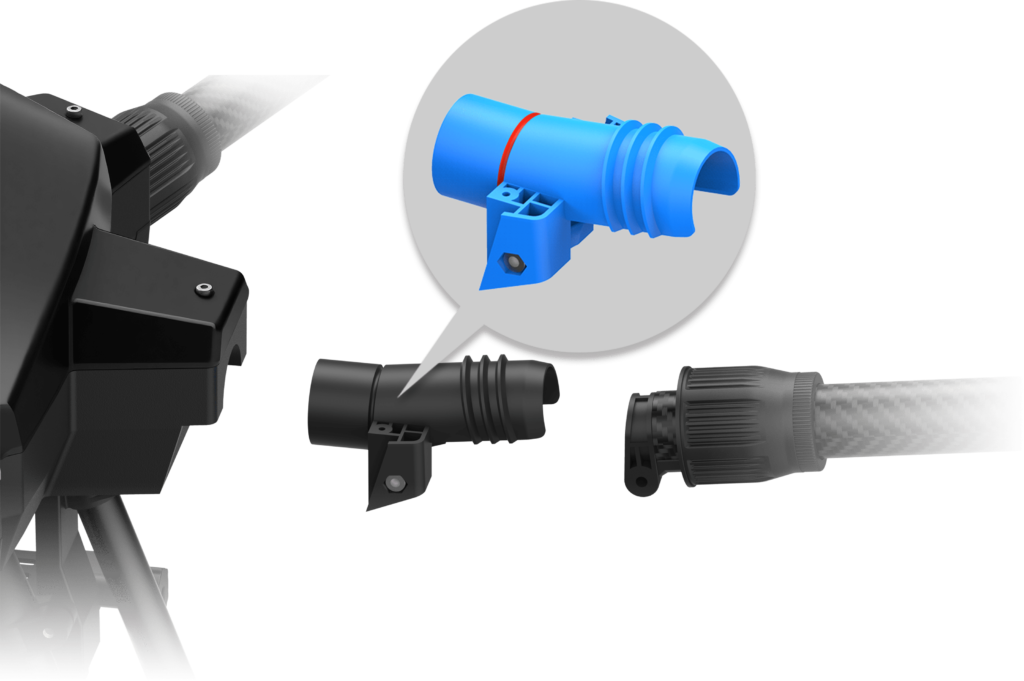

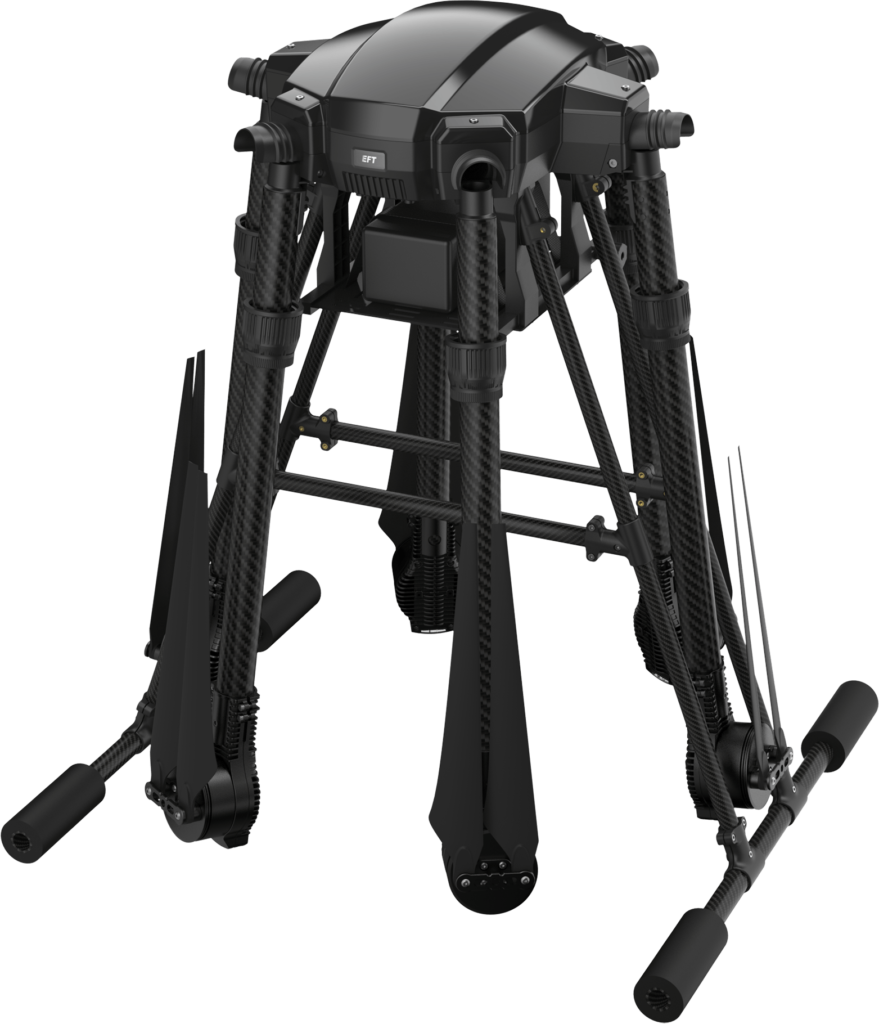

Folding Joint Arm Design for Easy & Affordable Maintenance
The modular, detachable arm design features built-in breakaway buffers at key joints, reducing crash damage, enhancing durability, and lowering repair costs.
Integrated Modular Frame for Quick & Easy Assembly
Featuring a modular structure with an integrated injection molding process, this design reduces component complexity for easier assembly. Its spacious internal layout supports flexible component installation, making it ideal for light-load applications.

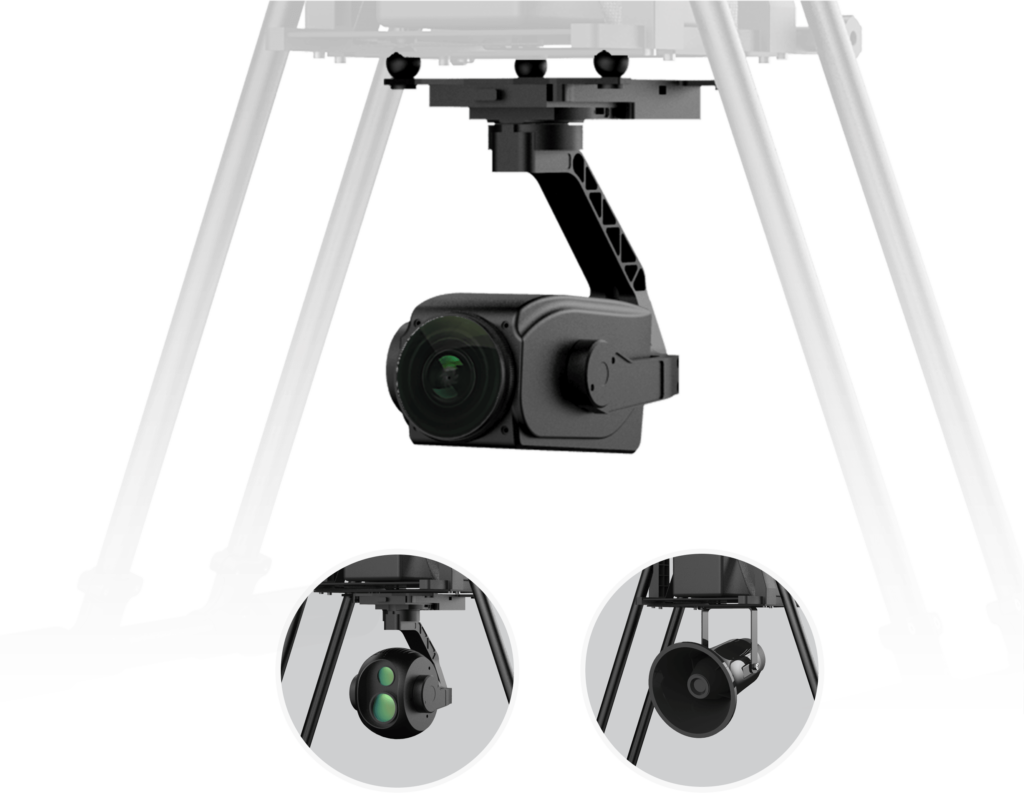

Expandable Mounting System Built for Multiple Missions
quipped with universal expansion ports, the platform supports devices such as gimbal cameras, loudspeakers, droppers, and pods. Designed for versatility, it’s ideal for inspection, rescue operations, police training, and more.
Multi-Use Expansion Platform
Performance Parameters
X6100
Wheelbase: 1000mm
Frame Weight: 2.82kg
Empty Weight: 4.85kg
Full Load Weight: 12kg
Payload: 0-3kg
Recommended Motor: E5
Recommended Propeller: 18inch
Recommended Battery: 16-22Ah（6S）
X6120
Wheelbase: 1290mm
Frame Weight: 3.04kg
Empty Weight: 7.5kg
Full Load Weight: 18kg
Payload: 0-6kg
Recommended Motor: X6 Plus
Recommended Propeller: 24inch
Recommended Battery: 16-22Ah（12S）
