Cube Orange+ ADS-B Flight Controller Kit with ADS-B Carrier Board

The Cube Orange+ ADS-B Flight Controller Kit is a professional-grade autopilot and flight-control solution designed for a wide range of remotely controlled aircraft and robotic platforms.

The kit includes the Cube Orange+, an ADS-B Carrier Board with a 1090MHz receiver, Power Brick Mini, I2C board, cables, buzzer cable, and mounting accessories.

The ADS-B receiver can provide compatible flight software with information about nearby manned aircraft, including aircraft position, altitude, and speed. Depending on the configured autopilot software and parameters, the system can support aircraft-awareness and avoidance functionality within a pilot-defined exclusion zone.

Key Features

• Cube Orange+ flight controller
• High-performance H7 processor
• Integrated 1090MHz ADS-B receiver
• ADS-B Carrier Board included
• Triple-redundant sensor architecture
• Temperature-controlled IMU heating system
• IMU shock-absorption design
• Robust DF17 interface connectors
• Supports multiple UAV and robotic vehicle types
• Compatible with appropriate flight-control software
• Suitable for professional, educational, research, and UAV applications

Cube Orange+ Flight Controller

The Cube Orange+ provides a high-performance autopilot platform for remotely controlled aircraft and robotic vehicles.

Its H7 processor provides increased processing capability for compatible flight-control applications. The controller incorporates redundant sensors and an IMU heating system designed to support operation across a wide range of environmental temperatures.

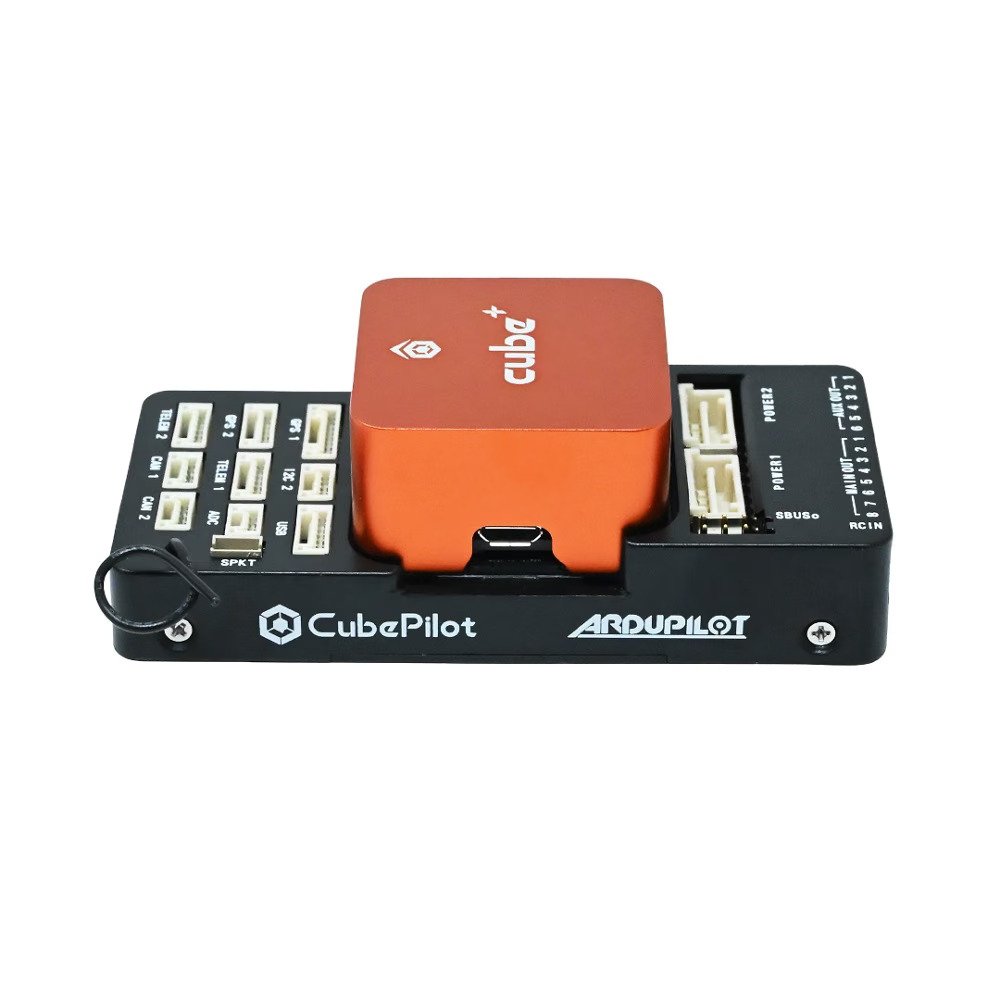

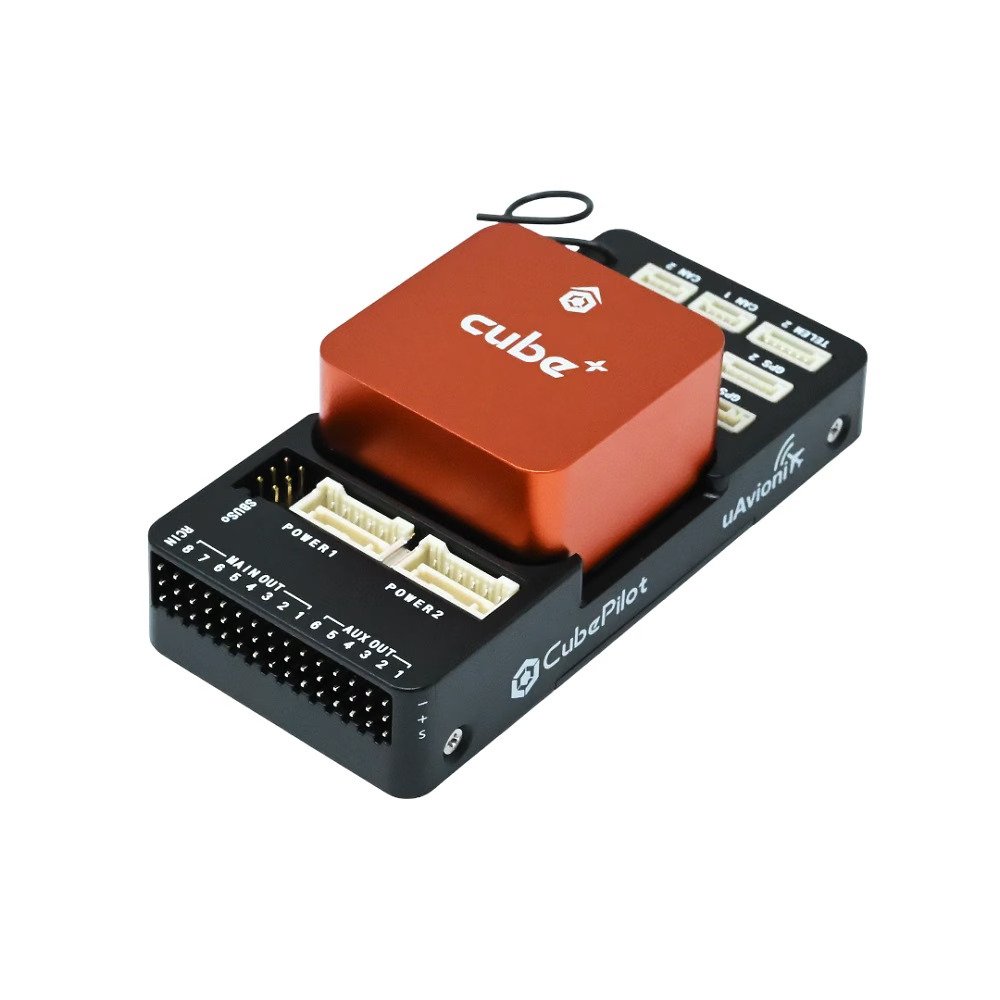

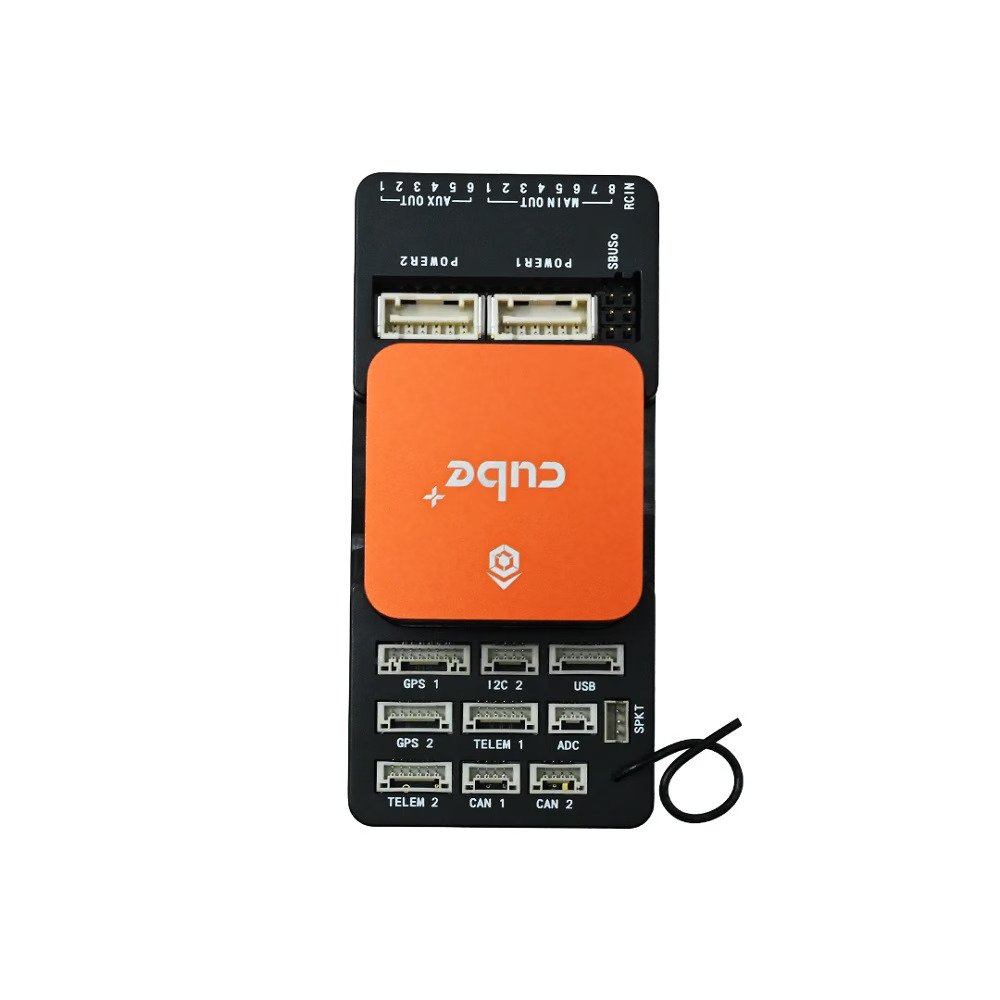

ADS-B Carrier Board

The included ADS-B Carrier Board integrates a 1090MHz ADS-B receiver.

With compatible flight-control software, ADS-B information from nearby aircraft can be received and displayed. Available information may include:

• Aircraft position
• Altitude
• Speed
• Other supported ADS-B information

The autopilot can be configured to use aircraft-awareness information for avoidance behavior when the appropriate software, parameters, and pilot-defined exclusion zone are configured.

Supported Airframes

The Cube Orange+ platform can be used with compatible:

• VTOL aircraft
• Fixed-wing planes
• Multicopter drones
• Traditional helicopters
• Rovers
• Boats
• Submersible vehicles
• General robotics platforms

Technical Highlights

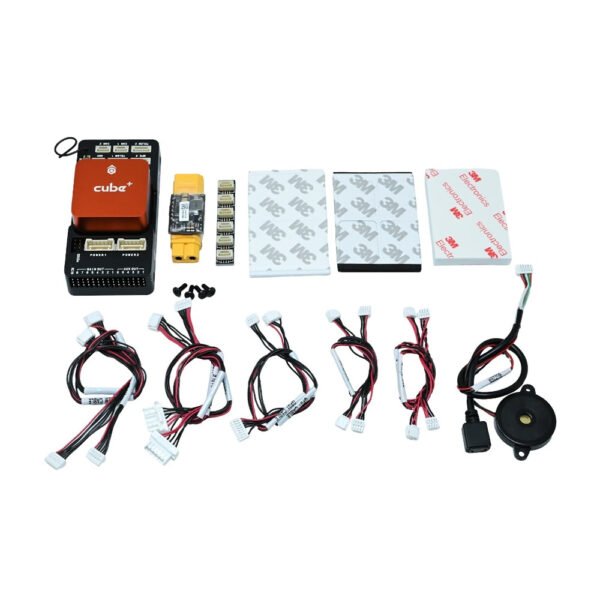

Package Includes

• 1 × Cube Orange+
• 1 × ADS-B Carrier Board
• 1 × Power Brick Mini
• 1 × I2C Board
• 1 × Buzzer Cable
• 2 × CAN Cables
• 1 × Power Brick Mini Cable
• 1 × GPS1 Cable
• 1 × Micro USB Cable
• 2 × I2C Cables
• 4 × Mounting Screws
• 3 × 3M Large Stickers
• 2 × 3M Medium Stickers
• 4 × 3M Small Stickers

Applications

The Cube Orange+ ADS-B Kit is suitable for:

• Agricultural UAV development
• Professional drone applications
• Survey and mapping UAVs
• Multirotor platforms
• VTOL aircraft
• Fixed-wing UAVs
• Robotics projects
• UAV research and development
• Educational drone projects
• Professional autopilot integration

Important Compatibility & Safety Note

Before purchase and installation, verify compatibility between the Cube Orange+, ADS-B Carrier Board, flight-control firmware, GPS, power module, airframe, and connected peripherals.

ADS-B-based aircraft awareness and avoidance behavior depends on the configured autopilot software, parameters, exclusion-zone settings, and supported hardware. It should not be treated as a substitute for the pilot’s responsibility to maintain safe separation and comply with applicable aviation regulations.
