Description

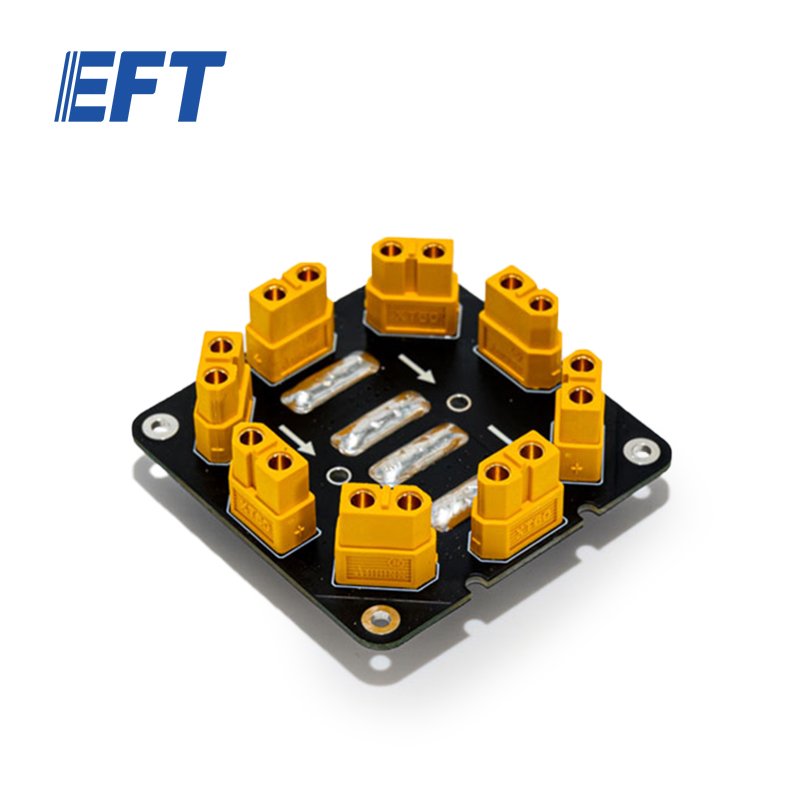

EFT E4P Power Distribution Board for E410P, E416P & E420P
The EFT E4P Power Distribution Board (PDB) is designed for compatible EFT E410P, E416P, and E420P agricultural drone frames. It provides a centralized power distribution solution for connecting compatible ESCs and power wiring within the drone’s electrical system.
With a compact 60 × 60mm design and four power output connections, the E4P PDB is suitable for agricultural drone assembly, maintenance, repair, and replacement applications.
Key Features
- Model: EFT E4P
- Compatibility: EFT E410P, E416P and E420P frames
- Type: Four-output Power Distribution Board
- Dimensions: 60 × 60mm
- Output Ports: 4
- Connection: Solder pads for compatible ESCs and power cables
- Compact design for compatible EFT drone frames
- Designed for agricultural UAV power distribution
- Suitable for assembly, repair, and replacement
- Designed for high-current agricultural drone applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | EFT E4P |
| Product Type | Four-Axis Power Distribution Board |
| Compatible Frames | EFT E410P, E416P, E420P |
| Input Voltage Range | 12V–60V DC |
| Maximum Continuous Current | 120A |
| Peak Current Capacity | Up to 200A for short durations |
| Number of Outputs | 4 |
| Connector Type | Solder pads |
| Protection | Overcurrent, short-circuit & reverse-polarity protection |
| PCB Material | Flame-retardant PCB |
| Dimensions | 60 × 60mm |
| Operating Temperature | -20°C to 85°C |
| Mounting Hole Diameter | 3mm |
Important: Electrical ratings should be verified against the current EFT/manufacturer datasheet before being treated as guaranteed specifications on the marketplace.
Compatible EFT Agricultural Drone Frames
The EFT E4P PDB is designed for the following EFT E-Series frames:
EFT E410P
Suitable for compatible E410P electrical and power-distribution assemblies.
EFT E416P
Designed for integration with compatible E416P drone frame electrical systems.
EFT E420P
Suitable for compatible E420P agricultural drone frame power-distribution applications.
Always verify the PDB version, voltage, current requirements, wiring configuration, and mounting pattern before installation.
Applications
The EFT E4P Power Distribution Board can be used for:
- Agricultural spraying drone assembly
- Drone electrical system repair
- PDB replacement
- ESC power connections
- Agricultural UAV maintenance
- EFT E-Series frame servicing
- Drone component upgrades and replacement
Why Choose the EFT E4P PDB?
The EFT E4P Power Distribution Board provides a dedicated power-distribution solution for compatible EFT E-Series agricultural drone frames. Its compact form factor, four-output configuration, and solder-pad connections make it suitable for drone builders and technicians working with compatible EFT platforms.
Its protection features, if confirmed for the specific board revision, can provide additional electrical-system protection during operation.
Installation & Maintenance
Before installation:
- Confirm compatibility with your E410P, E416P, or E420P frame.
- Verify the required voltage and current specifications.
- Check the polarity and wiring configuration.
- Ensure all soldered connections are secure.
- Inspect the board for moisture, dust, physical damage, or loose connections before operation.
Installation should be performed by a qualified or experienced drone technician, particularly when working with high-current power systems.
Package Includes
- 1 × EFT E4P Power Distribution Board
- Installation instructions / Video & PDF support, if supplied with the product
Best For
Agricultural drone technicians, UAV assemblers, repair centers, service providers, and operators looking for an EFT E4P Power Distribution Board for E410P, E416P, or E420P agricultural drones.
SEO/GEO Advantage
For Google + AI/GEO, this structure gives the product four clear signals:
Product → EFT E4P PDB
Compatibility → E410P / E416P / E420P
Function → Agricultural drone power distribution
Specifications → Voltage / current / dimensions / outputs
