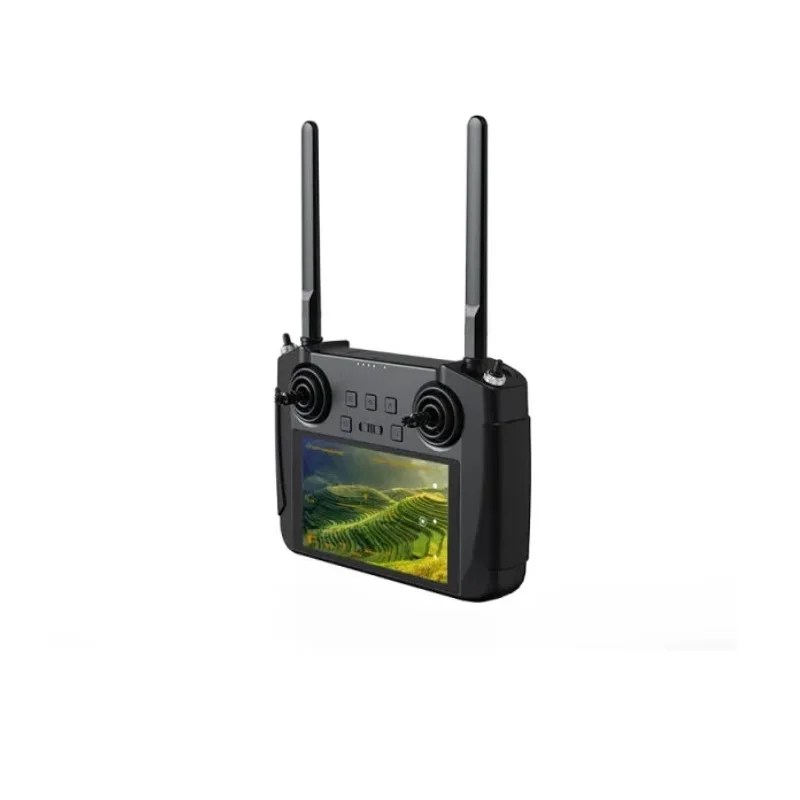

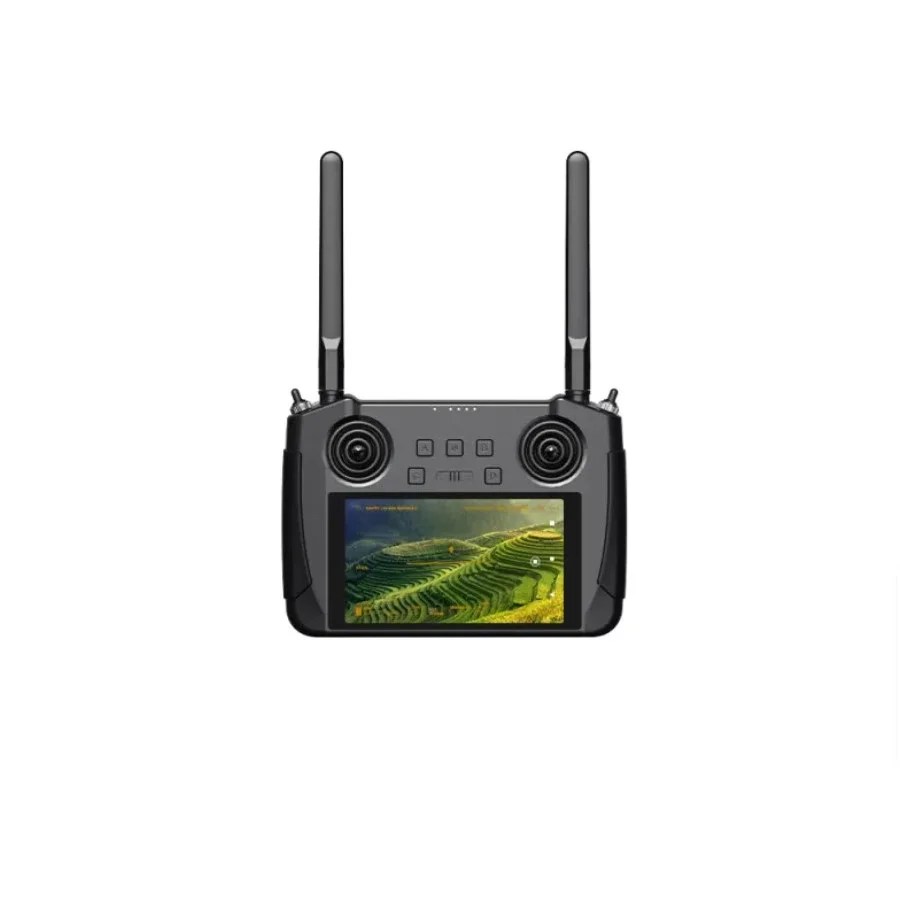

SIYI MK15 Mini HD Agriculture Drone Smart Controller FPV Combo
The SIYI MK15 Mini Agriculture Drone Smart Controller is a compact handheld control system designed for agricultural UAV operations. It combines a high-brightness touchscreen, FPV video functionality, navigation support and real-time flight information in a portable controller.
The MK15 provides operators with a live FPV view from the compatible drone camera while displaying important flight and telemetry information such as altitude, speed and battery status.
Its compact design makes it suitable for agricultural drone spraying, crop monitoring, field inspection, mapping and other compatible UAV applications.
Key Features
- 5.5-inch HD high-brightness LCD touchscreen
- Integrated FPV video display
- Real-time drone camera video monitoring
- Compact handheld design
- Agriculture-focused smart control functions
- GPS and navigation support
- Real-time telemetry and data overlay
- Customizable controls and buttons
- 10,200mAh 7.4V 2S Li-ion battery
- 75.48Wh battery capacity
- 120° FOV
- Omni antenna gain: 5dBi
- Long-range antenna: 11dBi where included with the applicable enterprise edition
- Designed for outdoor agricultural UAV operations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SIYI |
| Model | MK15 Mini |
| Product Type | Agriculture Drone Smart Controller |

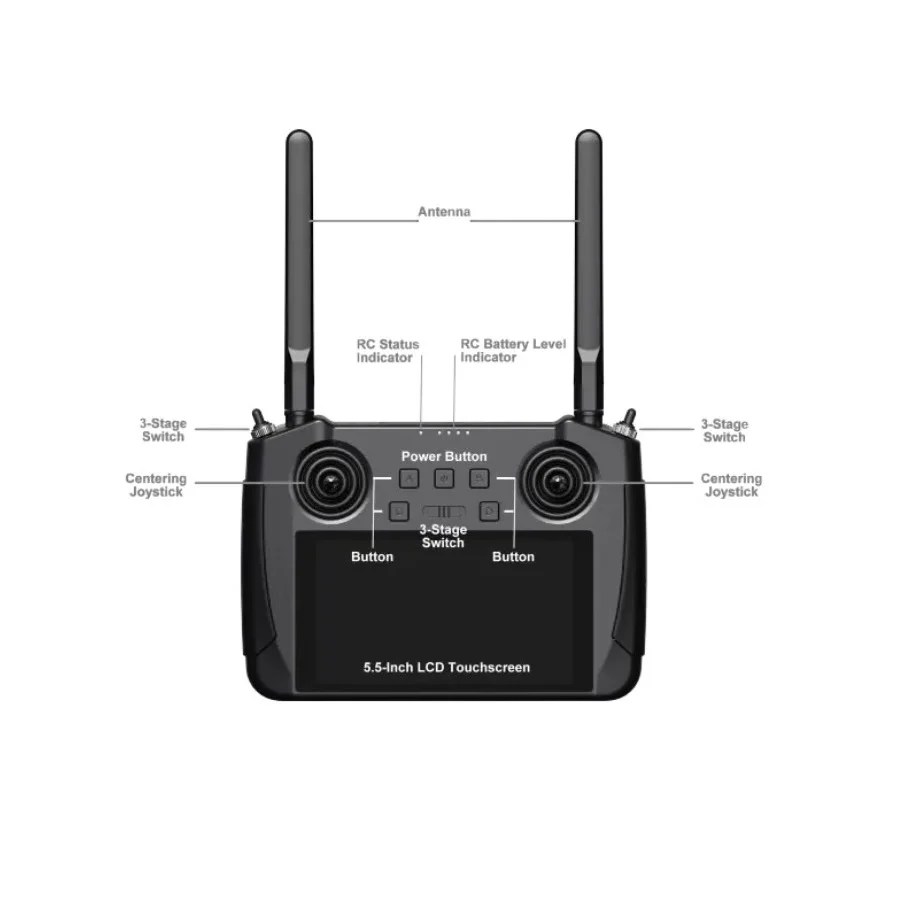

| Display | 5.5-inch HD High-Brightness LCD Touchscreen |
| Battery | 10,200mAh 7.4V 2S Li-ion |
| Battery Energy | 75.48Wh |
| Antenna Gain | Omni: 5dBi |
| Long-Range Antenna | 11dBi, included with applicable Enterprise Edition |
| Optional Antenna | Lollipop: 5dBi |
| FOV | 120° |
| Input Voltage | 12V |
| Power Consumption | 3W LED OFF / 8W LED ON |
| Image Sensor | 1/2.9-inch, 2MP |
| FPV | Supported |
| GPS | Supported |
| Touchscreen | Yes |
| Shipping Weight | 1.598kg |
| Shipping Dimensions | 24 × 21 × 12cm |
HD FPV Display
The MK15 features a 5.5-inch high-definition, high-brightness touchscreen for viewing the drone’s live camera feed and operating the controller interface.
The integrated FPV functionality allows the operator to monitor the drone’s camera view during compatible flight operations.
Agriculture Drone Functions
The controller is designed for agricultural UAV workflows such as:
- Crop monitoring
- Agricultural drone spraying
- Field inspection
- Precision farming operations
- Aerial mapping
- Drone flight monitoring
- UAV training and operation
Specific functions depend on the compatible drone, flight controller, software and system configuration.
GPS & Telemetry
The MK15 supports GPS and navigation-related functions for compatible UAV systems. Real-time information can be displayed through the controller interface, including flight and telemetry parameters such as:
- Altitude
- Speed
- Battery status
- Position/navigation information
- Flight telemetry
Battery & Power
The controller uses a 10,200mAh 7.4V 2S Li-ion battery with a stated energy capacity of 75.48Wh.
Power consumption is listed as:
- LED OFF: 3W
- LED ON: 8W
Antenna Options
The supplied specifications list the following antenna configurations:
- Omni antenna: 5dBi
- Long-range antenna: 11dBi, included with applicable Enterprise Edition
- Lollipop antenna: 5dBi, optional
Antenna configuration and actual communication performance depend on the specific MK15 version and operating environment.
Applications
The SIYI MK15 Mini can be used with compatible:
- Agricultural spraying drones
- Agriculture UAVs
- Crop monitoring drones
- Mapping drones
- Inspection UAVs
- Professional multirotors
- Drone training systems
- Industrial UAV platforms
Package Includes
1 × SIYI MK15 Mini Agriculture Drone Smart Controller with HD FPV Display Combo
