Description

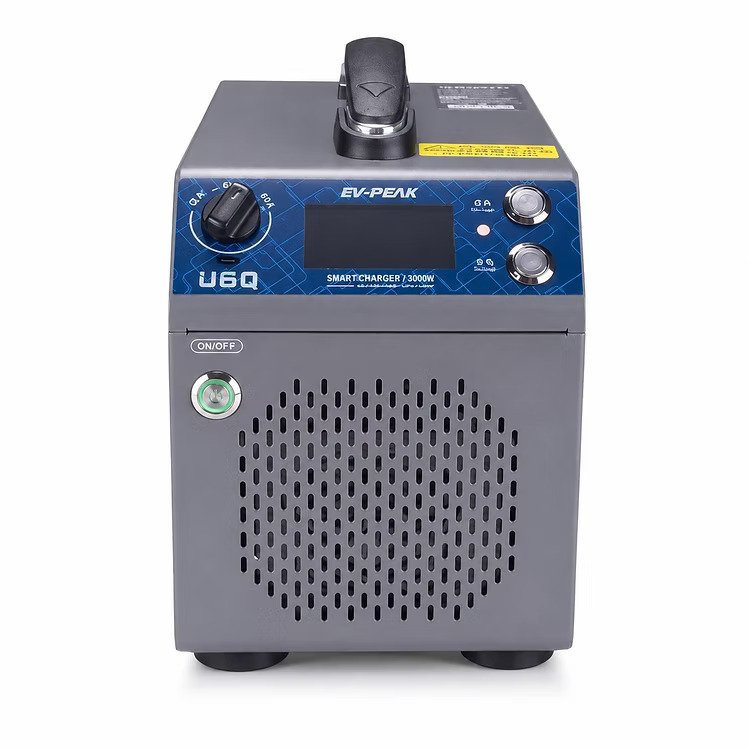

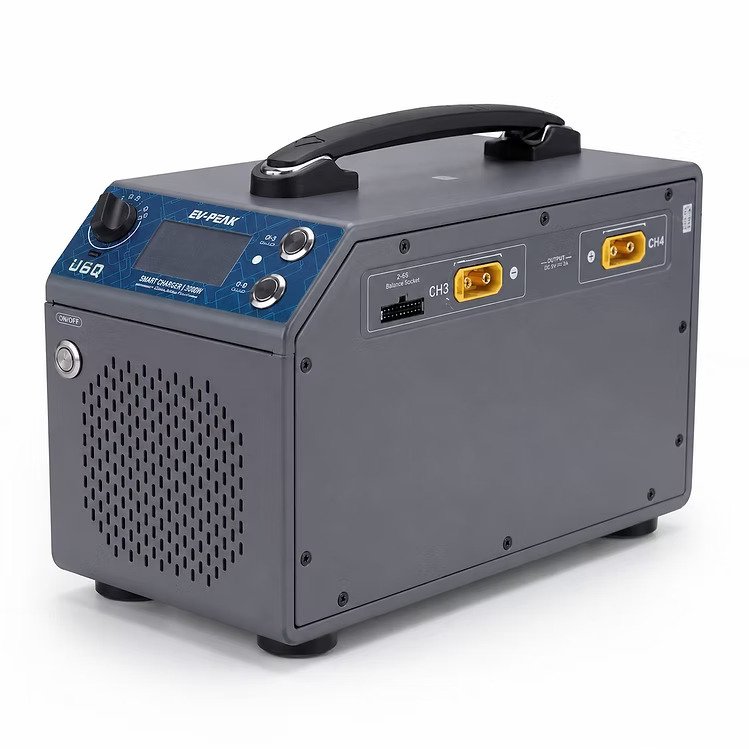

EV-PEAK U6Q 3000W Quad Channel Smart Battery Charger
The EV-PEAK U6Q Charger is a high-power, four-channel battery charging solution designed for demanding UAV and drone operations. Its independent quad-channel architecture allows users to charge up to four compatible battery packs simultaneously.
With support for 6S to 14S battery configurations, up to 3000W output power, and peak charging current of up to 60A, the U6Q is suitable for large-capacity battery systems used in agricultural spraying drones, industrial UAVs, surveying platforms and professional drone fleets.
The charger also provides intelligent battery monitoring, LCD display information, multiple protection systems and an aluminium cooling design.
Key Features
- 4 independent charging channels
- Charge up to 4 compatible battery packs simultaneously
- Up to 3000W total output power
- Peak charging current up to 60A
- Supports 6S–14S battery configurations
- Compatible with LiPo, LiHV and compatible Smart batteries
- AC input: 100–240V
- LCD display for charging information
- Battery voltage and cell-balance monitoring
- Displays charging current, capacity and charging time
- Over-current protection
- Over-voltage protection
- Over-temperature protection
- Short-circuit protection
- Reverse-polarity protection
- Metal housing
- Aluminium heatsink and air-cooling design
- Designed for high-demand UAV battery charging
Technical Specifications
| Specification | Details |
|---|---|
| Brand | EV-PEAK |
| Model | U6Q |
| Product Type | Quad-Channel Smart Battery Charger |
| Number of Channels | 4 Independent Channels |
| Maximum Output Power | Up to 3000W |
| Peak Charging Current | Up to 60A |
| Battery Types | LiPo / LiHV / Compatible Smart Batteries |
| Supported Cell Count | 6S–14S |
| Input Voltage | AC 100–240V |
| Display | LCD |
| Monitoring | Current, Voltage, Cell Balance, Time, Capacity |
| Safety Protection | Over-Current, Over-Voltage, Over-Temperature, Short Circuit, Reverse Polarity |
| Housing | Metal |
| Cooling | Aluminium Heatsink + Air Cooling |
| Dimensions | Approx. 303 × 150 × 220mm |
| Weight | Approx. 6.5kg |

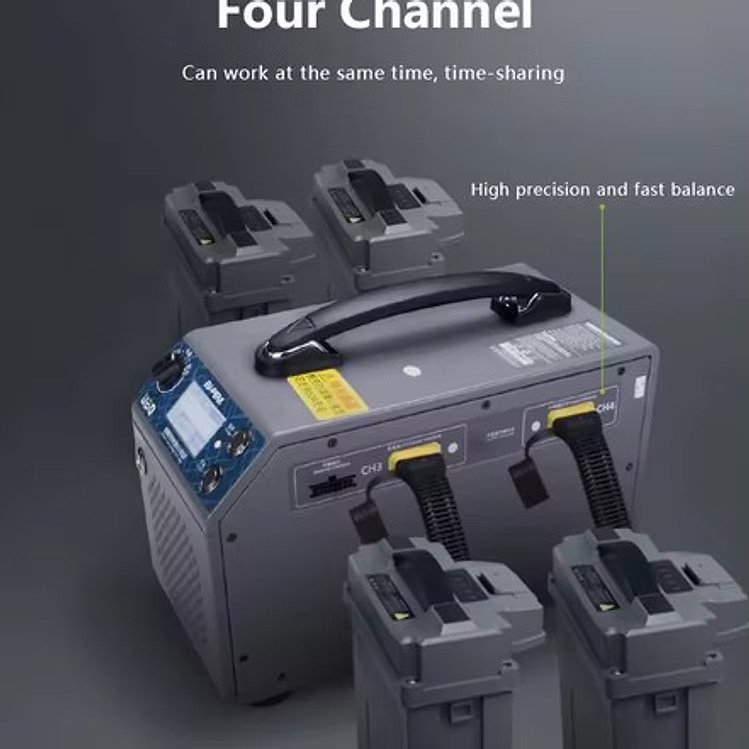

4-Port Quad-Channel Charging
The U6Q features four independent charging channels, allowing multiple compatible battery packs to be charged at the same time.
This architecture is particularly useful for drone operators and service centers that manage multiple battery packs during regular flight operations.
High-Power Charging
With up to 3000W total output power and peak charging current of up to 60A, the EV-PEAK U6Q is designed for high-capacity UAV battery systems.
It supports compatible 6S–14S LiPo and LiHV batteries, making it suitable for various professional drone platforms.

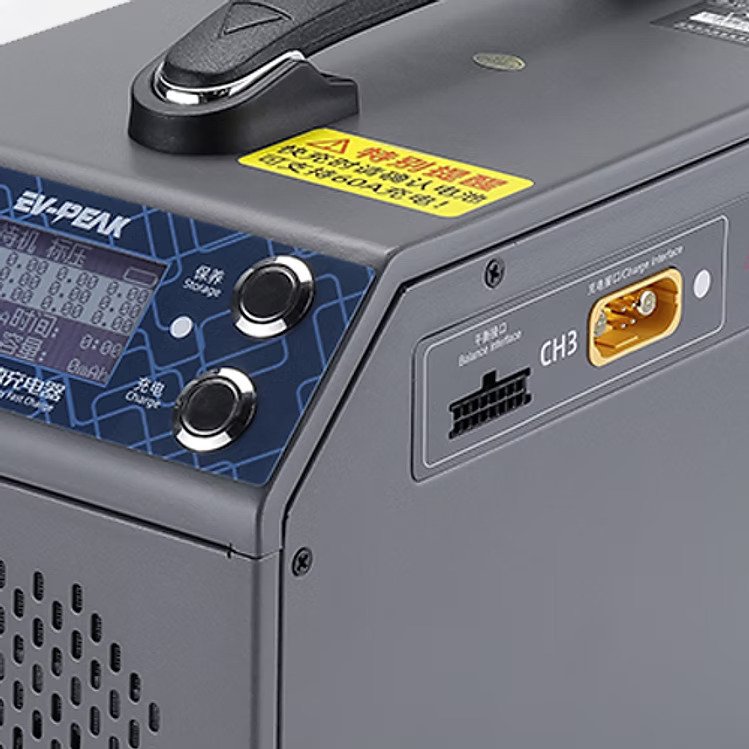

Smart LCD Monitoring
The integrated LCD display provides charging information for the connected batteries, including:
- Charging current
- Battery voltage
- Cell voltage/balance information
- Charging capacity
- Charging time
- Channel charging status
This allows users to monitor charging activity across the available channels.
Safety Protection
The charger incorporates multiple protection functions, including:
- Over-current protection
- Over-voltage protection
- Over-temperature protection
- Short-circuit protection
- Reverse-polarity protection
Users should always follow the battery manufacturer’s recommended charging parameters and inspect battery condition before charging.

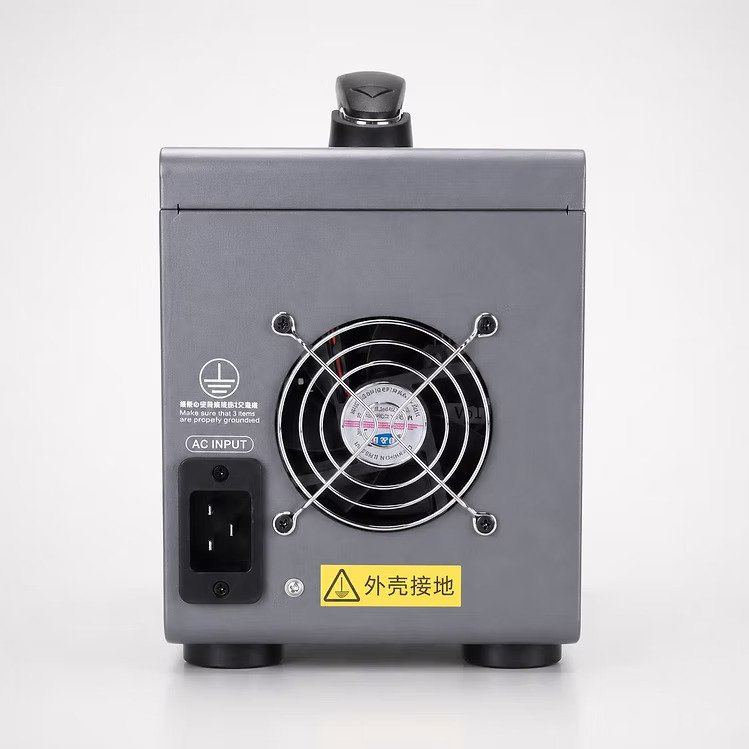

Cooling & Housing
The U6Q uses a metal housing, aluminium heatsink and air-cooling system for thermal management during charging operation.
Its construction is intended for professional charging environments such as UAV workshops, service centers and fleet operations.
Applications
Agricultural Drone Operations
Suitable for compatible battery systems used in agricultural spraying drones and other high-capacity UAV platforms.
Drone Service Providers
Useful for operators managing multiple batteries and frequent drone sorties.
Drone Training Institutes
Suitable for technical training centers teaching agricultural drone assembly, maintenance and battery management.
UAV Workshops & Service Centers
Can be used for battery charging and maintenance workflows involving compatible 6S–14S battery systems.
Industrial & Surveying UAVs
Suitable for compatible professional UAV platforms used for surveying, inspection and industrial operations.
Package / Included Accessories
Please confirm the exact retail package contents from the manufacturer’s current datasheet before publishing a detailed accessories list.
The supplied description identifies the product as the EV-PEAK U6Q charger, but does not provide a complete confirmed package list.
Important Compatibility & Safety Note
Before purchasing or charging, verify the battery chemistry, cell count, charging voltage, maximum charging current, connectors and balance interface. The maximum 3000W/60A figures are operating limits and do not mean every battery can safely be charged at those levels.
