Description

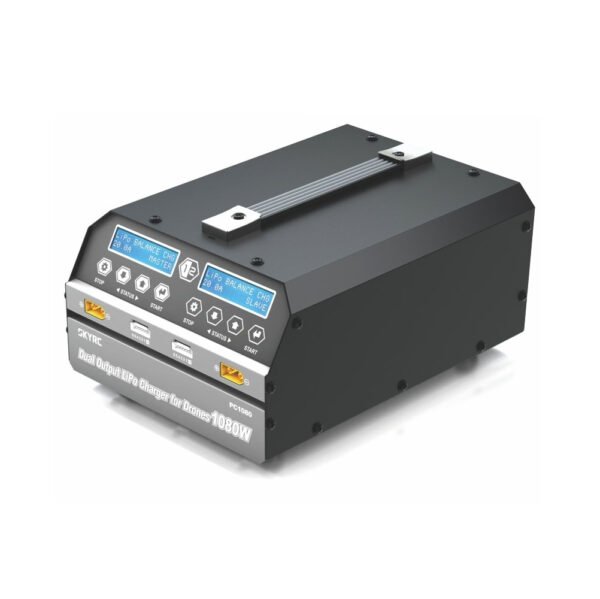

SkyRC PC1080 1080W Dual Channel 6S LiPo/LiHV Charger
The SkyRC PC1080 Charger is a dual-channel high-power battery charger designed for industrial and professional drone applications. It can balance charge two 6S LiPo/LiHV battery packs simultaneously, making it suitable for large battery systems used with agricultural and industrial drones.
The charger delivers 1080W total output power, with 540W per channel, and supports charging currents from 1A to 20A.
It also includes battery voltage detection, cell-level internal resistance measurement, LiHV charging capability, storage charging, synchronization mode, and built-in safety protection features.
Key Features
- 1080W total output power
- Dual-channel charging: 540W × 2
- Supports 6S LiPo/LiHV batteries
- Charging current: 1–20A
- Simultaneous balance charging of two battery packs
- LiHV charging mode
- Storage charging mode
- Battery voltage measurement
- Battery internal resistance measurement
- Master-slave synchronization function
- Supports synchronization of multiple compatible chargers
- 32-bit high-speed STMicroelectronics processor
- Active PFC power supply system
- AC input: 100–240V
- Short-circuit protection
- Reverse-polarity protection
- Over-temperature protection
- Anti-spark protection circuit
- Dual high-speed cooling fans
- High-density aluminum heatsink
- Conformal-coated electronics
- CE, RoHS and FCC compliance stated by the manufacturer/source

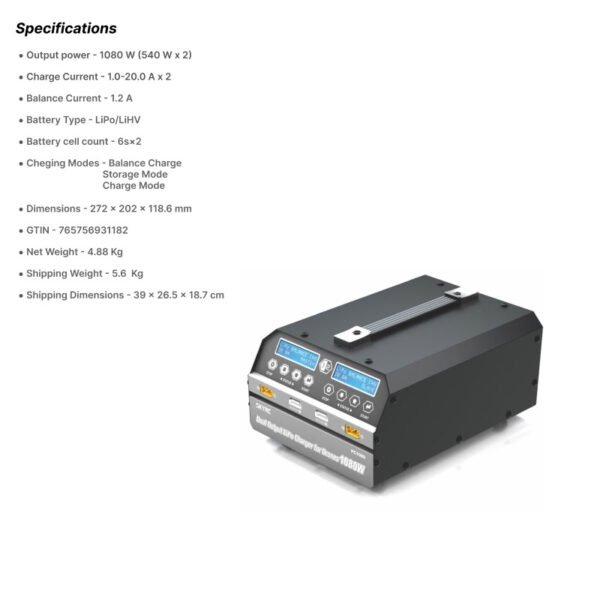

Technical Specifications
| Specification | Details |
|---|---|
| Brand | SkyRC |
| Model | PC1080 |
| Product Type | Dual-Channel Drone Battery Charger |
| Total Output Power | 1080W |
| Channel Output | 540W × 2 |
| Charge Current | 1.0–20.0A |
| Input Type | AC Only |
| Input Voltage | 100–240V AC |
| Channels | 2 |
| Battery Type | 6S LiPo / LiHV |
| Charging Mode | Balance Charging / Storage Mode |
| Discharging Power | 50W |
| Balance Current | 1.2A |
| Battery Voltage Detection | Yes |
| Internal Resistance Measurement | Yes |
| Synchronization | Master-Slave / Multiple Charger Synchronization |
| Cooling | Dual Ball-Bearing High-Speed Fans |
| Processor | 32-bit STMicroelectronics CPU |
| Dimensions | 272 × 202 × 118.6mm |
| Product Weight | 4.88kg |
| Shipping Weight | 5.6kg |
| Shipping Dimensions | 39 × 26.5 × 18.7cm |

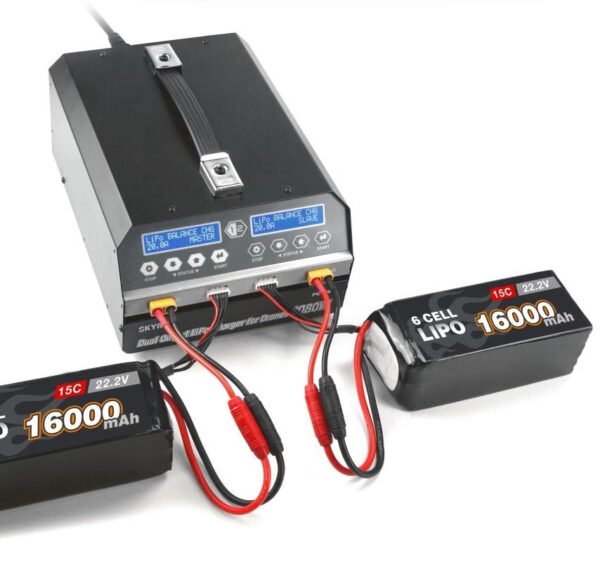

Dual-Channel Charging
The PC1080 can balance charge two compatible 6S battery packs simultaneously. Its 1080W total output is divided across two 540W charging channels, making it suitable for high-capacity drone battery charging applications.
Battery Measurement Functions
The built-in measurement functions allow users to check:
- Battery voltage
- Individual cell internal resistance
- Battery condition indicators
- Battery matching information
Internal resistance measurements can be useful when assessing battery condition and comparing compatible battery packs.
Charger Synchronization
The PC1080 includes a synchronization function that allows multiple compatible chargers to operate together when charging the same battery system.
When paired with compatible charging hubs such as the SkyRC G630, the system can support sequential charging management for multiple battery packs, subject to the manufacturer’s specified configuration.
Safety & Protection
The charger includes multiple protection functions designed for charging safety:
- Short-circuit protection
- Reverse-polarity protection
- Over-temperature protection
- Anti-spark protection circuit
- Power and battery monitoring
Always use the charger according to the battery manufacturer’s charging specifications and the SkyRC instruction manual.
Cooling & Power Management

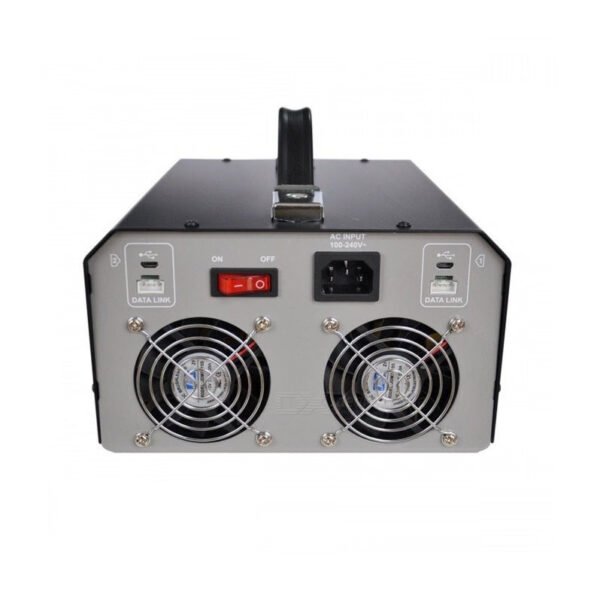

The PC1080 uses an active PFC system, high-frequency capacitors, dual cooling fans, and a fin-type aluminum heatsink. These features are designed for high-power charging operation and thermal management.
Applications
The SkyRC PC1080 is suitable for:
- Agricultural drone battery charging
- Agriculture spraying drone batteries
- Industrial UAV battery systems
- Professional multirotor batteries
- Large 6S LiPo battery packs
- 6S LiHV battery packs
- Drone maintenance and service centers
- Drone assembly and technical training facilities
Package Includes
- 1 × SkyRC PC1080 10A Dual Channel LiPo/LiHV 6S Drone Battery Charger
- 1 × AC Power Cord
- 1 × Instruction Manual
